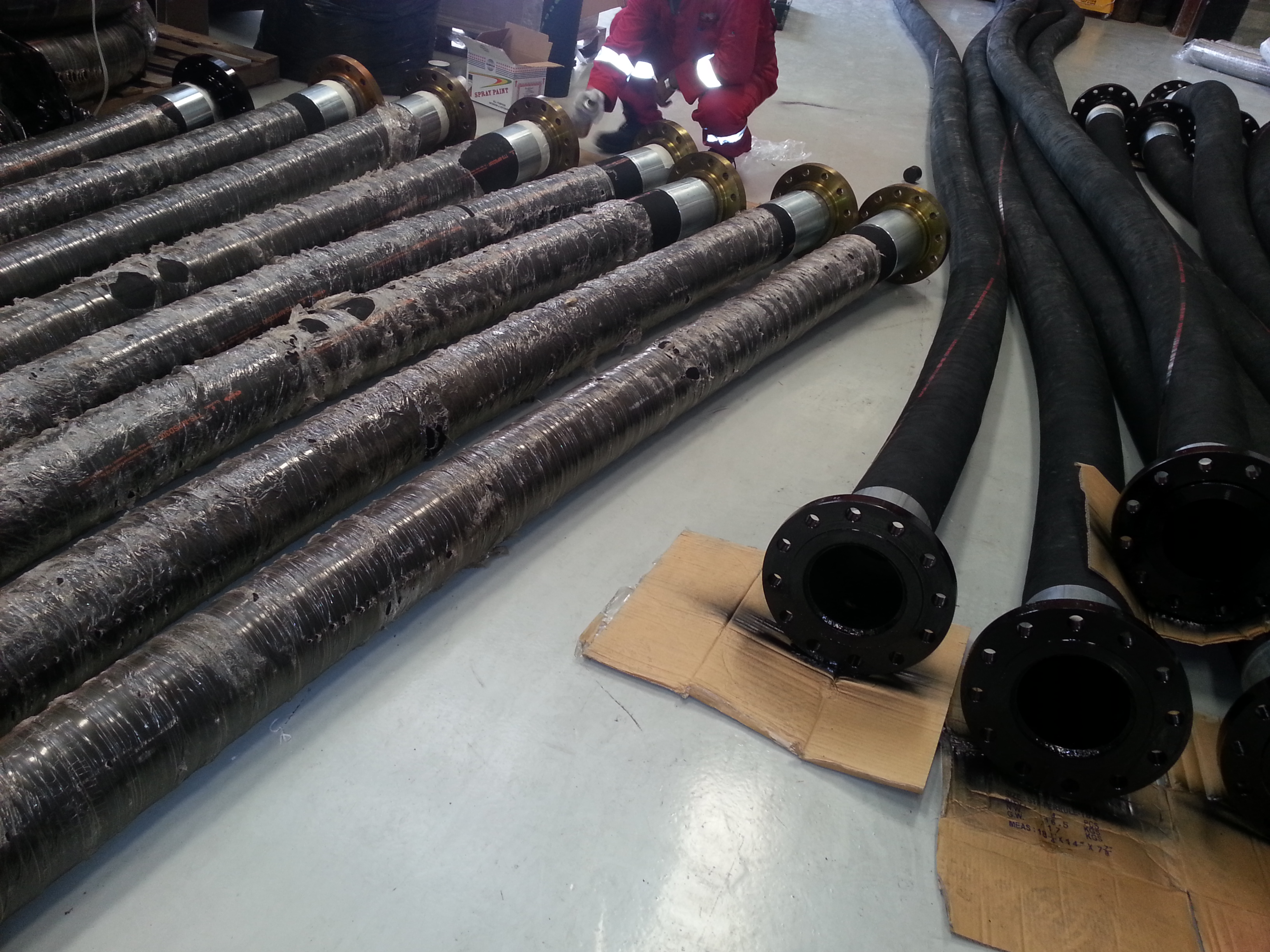

Oil & Gas, Industrial Large Bore & Bop Hoses assembly

Our Standard Industrial Hoses Consists Of:

- Air Hose 10bar and 20bar working pressure from ¼" to 2" ID
- Water Suction/Delivery Hose 10bar working pressure from 1" to 6" ID
- Oil Petroleum Suction/Delivery Hose 10bar working pressure from 1" to 6" ID
- Petrol delivery hose 10bar working pressure ¾" to 1" ID
- Steam hose 18bar working pressure from ¾" to 2" ID
- Low Pressure Breathing Air hose 30bar working pressure ¼” ID
- High Pressure Breathing Air hose 413bar working pressure ¼” ID

Our Large Bore Hoses Consists Of:

- Water Suction/Delivery Hose 220PSI working pressure with 4:1 SF from 1" to 8" ID
- Water Delivery Hose 600PSI working pressure with 4:1 SF from 2" to 6" ID
- Cement Delivery Hose 150PSI working pressure with 4:1 SF from 2" to 6" ID
- Acid and Chemical Hose 235PSI working pressure with 4:1 SF from 1" to 4" ID
- Concrete Pumping Hose 1230PSI working pressure with 4:1 SF from 3" to 5" ID
- Marine Dock Handling Hose 225PSI working pressure with 4:1 SF (BS EN ISO
  1765:1997 formally BS1435: Part 1 1987) from 3" to 8" ID
- Multi-Purpose Oil/Mud/Cement/Fuel Suction/Delivery Hose 300PSI working pressure
  with   4:1 SF from 3" to 8" ID
- Multi-Purpose Oil/Mud/Cement/Fuel Delivery Hose 300PSI working pressure with 4:1
   SF  from 2" to 8" ID
- Oil/Water Delivery Hose 600PSI working pressure with 4:1 SF from 3" to 8" ID

- Sea Water Delivery Hose 750PSI working pressure with 3:1 SF from 4" to 8" ID

Our Special MTO Hoses Consists Of:

- Dock Loading Hoses
- Bunkering Hoses
- Floating Roof Drain Hoses
- Seawater Dump Hoses
- Compensator Hose
- Floating Discharge Pipeline Hoses
- Big Bore Mining Hoses

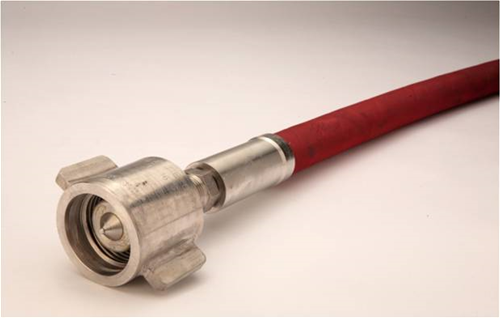

Comprehensive ranges of industrial hose fittings are available using new generation Internally Swaged Coupling programme which includes:

- NPT Male Ends
- Hammer union (Fig 100/200/206/400/602 etc) Butt welded or threaded ends.
- ANSI/ASA150/300/600 Flanged Ends
- PN10/16/25/40 Flanged Ends
- JIS 5/10/20K Flanged Ends
- BS Table D/E/F Flanged Ends

The fittings for flanged ends are available in “Weld Neck” (WN) and “Slip on” (SO) type RF  in Carbon Steel or Stainless Steel.

All hose assemblies are custom made to the end user requirements, tested and certified to 1.5 W.P. unless otherwise specified.

Our Industrial, Large Bore and Composite Hoses can be used for:

Ship Bunkering & Tanker Drop Hoses

  • Gas, Chemical, Acid & Cryogenic Hose
  • Sea Water And Bulk Delivery Hose
  • Large Bore High Pressure Hose
  • Aviation Fuelling Hose
  • Breathing Air and Safety Systems
